CMTTensor Class Reference

Stores MT-Tensor components at a single frequency, calculates derived quantities. More...

#include <CMTTensor.h>

Collaboration diagram for CMTTensor:

[legend]List of all members.

Public Member Functions
double	GetdZero () const
	Function for Errors that cannot be calculated analytically when we don't want Jacknife errors.
void	SetErrors (double dxx, double dxy, double dyx, double dyy)
	Set the errors for the impedance elements.
void	Rotate (double angle)
	Rotate by the given angle in radian.
double	GetRotangle () const
	!return the current angle in radian
double &	SetRotangle ()
	Set the rotation angle, without performing the corresponding rotation.
double	GetFrequency () const
	Get the frequency for the impedance.
std::complex< double >	GetZyy () const
	Return tensor elements.
std::complex< double >	GetZxx () const
std::complex< double >	GetZxy () const
std::complex< double >	GetZyx () const
std::complex< double > &	SetZyy ()
	Write access to tensor elements.
std::complex< double > &	SetZxx ()
std::complex< double > &	SetZxy ()
std::complex< double > &	SetZyx ()
double	GetdZxx () const
	Return tensor element errors.
double	GetdZxy () const
double	GetdZyx () const
double	GetdZyy () const
double &	SetdZyy ()
	Write access to errors.
double &	SetdZxx ()
double &	SetdZxy ()
double &	SetdZyx ()
double	GetRhoxx () const
	Return apparent resistivity.
double	GetRhoxy () const
double	GetRhoyx () const
double	GetRhoyy () const
double	GetPhixx () const
	Return phase.
double	GetPhixy () const
double	GetPhiyx () const
double	GetPhiyy () const
double	GetdRhoxx () const
	Return Rho Error for tensor elements.
double	GetdRhoxy () const
double	GetdRhoyx () const
double	GetdRhoyy () const
double	GetdPhixx () const
	return phase error for tensor elements
double	GetdPhixy () const
double	GetdPhiyx () const
double	GetdPhiyy () const
double	GetRhoxxStar () const
	Return Schmucker's rho* for tensor elements.
double	GetRhoxyStar () const
double	GetRhoyxStar () const
double	GetRhoyyStar () const
double	GetZxxStar () const
	Return Schmucker's z* for tensor elements.
double	GetZxyStar () const
double	GetZyxStar () const
double	GetZyyStar () const
std::complex< double >	GetS1 () const
	Some invariants and intermediate quantities for strike and skew calculation.
std::complex< double >	GetS2 () const
std::complex< double >	GetD1 () const
std::complex< double >	GetD2 () const
std::complex< double >	GetBerd () const
	The Berdichevskyi invariant.
double	GetdBerd () const
	The error of the Berdichevskyi invariant.
std::complex< double >	GetDet () const
	The determinant.
double	GetdDet () const
	The error of the determinant.
double	GetDetreal () const
	The determinant of the real parts of Z.
double	GetdDetreal () const
	Get the error of the determinant of the real part.
double	GetMu () const
	Rotationally invariant phase difference.
double	GetKappa () const
	Swift's skew.
double	GetSigma () const
double	GetEta () const
	Bahr's skew.
double	GetAlpha () const
double	GetAlphaHigh () const
	Calculate strike angle, so it points to high conductivity direction (Phixy > Phiyx).
double	GetMaxPhiDiff () const
	Maximum phase difference.
double	GetPhi11 () const
	All the following quantities are defined in Caldwell GJI 158, 457-469, the phase tensor elements.
double	GetPhi12 () const
double	GetPhi21 () const
double	GetPhi22 () const
double	GetAlpha_phi () const
double	GetBeta_phi () const
double	GetPi1 () const
double	GetPi2 () const
double	GetPhiStrike () const
double	GetPhiMax () const
double	GetPhiMin () const
double	GettrPhi () const
double	GetskPhi () const
double	GetdetPhi () const
double	GetPhi1 () const
double	GetPhi2 () const
double	GetPhi2Sq () const
double	GetPhi3 () const
double	GetPhiEllip () const
double	GetXi1 () const
double	GetXi2 () const
double	GetXi3 () const
double	GetXi4 () const
double	GetEta1 () const
double	GetEta2 () const
double	GetEta3 () const
double	GetEta4 () const
double	GetI1 () const
double	GetI2 () const
double	GetI3 () const
double	GetI4 () const
double	GetI5 () const
double	GetI6 () const
double	Getd13 () const
double	Getd12 () const
double	Getd24 () const
double	Getd34 () const
double	Getd41 () const
double	Getd23 () const

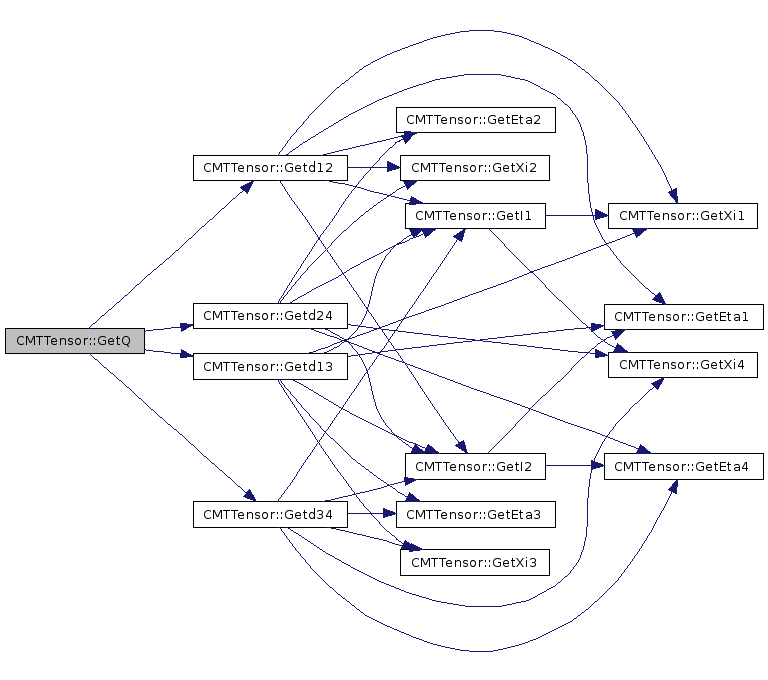

double	GetQ () const

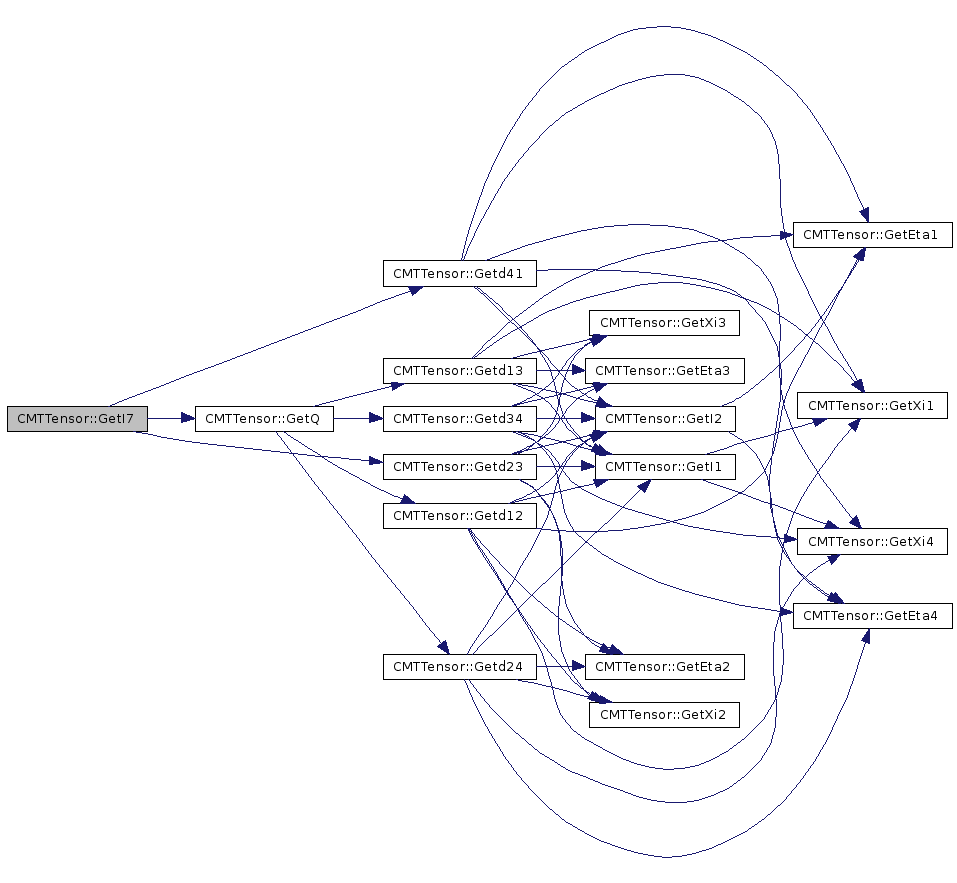

double	GetI7 () const
double	Geta () const
double	Getb () const
double	Getr () const
double	GetRx () const
	Return coherency for the x-direction.
double	GetRy () const
	Return coherency for the y-direction.
double	GetNu () const
	The degrees of freedom used for transfer function estimation.
	CMTTensor ()
	CMTTensor (const std::complex< double > &xx, const std::complex< double > &xy, const std::complex< double > &yx, const std::complex< double > &yy, const double freq=1., const double angle=0.0)
CMTTensor &	operator= (const CMTTensor &source)
virtual	~CMTTensor ()
Friends
class	CMTStation
class	C1DMTSynthData
class	JParser
class	EDIParser

---

Detailed Description

Stores MT-Tensor components at a single frequency, calculates derived quantities.

Definition at line 9 of file CMTTensor.h.

---

Constructor & Destructor Documentation

CMTTensor::CMTTensor

(

)

Definition at line 3 of file CMTTensor.cpp.

                    :
 Zxx(0),
 Zxy(0),
 Zyx(0),
 Zyy(0),
 dZxx(0),
 dZxy(0),
 dZyx(0),
 dZyy(0),
 frequency(0),
 rotangle(0),
 Rx(0),
 Ry(0),
 Nu(0)
{
}

CMTTensor::CMTTensor	(	const std::complex< double > &	xx,
		const std::complex< double > &	xy,
		const std::complex< double > &	yx,
		const std::complex< double > &	yy,
		const double	freq = 1.,
		const double	angle = 0.0
	)

Definition at line 20 of file CMTTensor.cpp.

                                                                                            :
Zxx(xx),
 Zxy(xy),
 Zyx(yx),
 Zyy(yy),
 dZxx(0),
 dZxy(0),
 dZyx(0),
 dZyy(0),
 frequency(freq),
 rotangle(angle),
 Rx(0),
 Ry(0),
 Nu(0)
{
}

CMTTensor::~CMTTensor

(

)

[virtual]

Definition at line 57 of file CMTTensor.cpp.

{
}

---

Member Function Documentation

double CMTTensor::GetdZero

(

)

const [inline]

Function for Errors that cannot be calculated analytically when we don't want Jacknife errors.

Definition at line 58 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

{return 0.0;}

void CMTTensor::SetErrors	(	double	dxx,
		double	dxy,
		double	dyx,
		double	dyy
	)			[inline]

Set the errors for the impedance elements.

Definition at line 60 of file CMTTensor.h.

Referenced by main().

                {dZxx=dxx; dZxy=dxy; dZyx=dyx; dZyy=dyy;}

void CMTTensor::Rotate

(

double

angle

)

Rotate by the given angle in radian.

Definition at line 61 of file CMTTensor.cpp.

Referenced by GetAlphaHigh(), and GetMaxPhiDiff().

{
        dcomp newxx, newxy, newyx, newyy;
        const double cangle = cos(angle);
        const double sangle = sin(angle);
        newxx = Zxx * cangle*cangle + (Zxy + Zyx)*  sangle * cangle + Zyy * sangle*sangle;
        newxy = Zxy * cangle*cangle -  (Zxx - Zyy) *   sangle * cangle  - Zyx * sangle*sangle;
        newyx = Zyx * cangle*cangle -  (Zxx - Zyy) *   sangle * cangle - Zxy * sangle*sangle;
        newyy = Zyy * cangle*cangle -  (Zxy + Zyx) *  sangle * cangle + Zxx * sangle*sangle;
        Zxx = newxx;
        Zxy = newxy;
        Zyx = newyx;
        Zyy = newyy;
        rotangle += angle;
}

double CMTTensor::GetRotangle

(

)

const [inline]

!return the current angle in radian

Definition at line 65 of file CMTTensor.h.

{return rotangle;}

double& CMTTensor::SetRotangle

(

)

[inline]

Set the rotation angle, without performing the corresponding rotation.

Definition at line 67 of file CMTTensor.h.

{return rotangle;}

double CMTTensor::GetFrequency

(

)

const [inline]

Get the frequency for the impedance.

Definition at line 69 of file CMTTensor.h.

Referenced by CMTStation::GetFrequencies(), main(), MTSampleGenerator::operator()(), PTensorMTStation::operator=(), and PrintRhosZs().

{return frequency;}

std::complex<double> CMTTensor::GetZyy

(

)

const [inline]

Return tensor elements.

Definition at line 71 of file CMTTensor.h.

Referenced by CalcS1(), main(), and CMTStation::WriteAsJ().

{return Zyy;}

std::complex<double> CMTTensor::GetZxx

(

)

const [inline]

Definition at line 72 of file CMTTensor.h.

Referenced by CalcS1(), main(), and CMTStation::WriteAsJ().

{return Zxx;}

std::complex<double> CMTTensor::GetZxy

(

)

const [inline]

Definition at line 73 of file CMTTensor.h.

Referenced by main(), and CMTStation::WriteAsJ().

{return Zxy;}

std::complex<double> CMTTensor::GetZyx

(

)

const [inline]

Definition at line 74 of file CMTTensor.h.

Referenced by main(), and CMTStation::WriteAsJ().

{return Zyx;}

std::complex<double>& CMTTensor::SetZyy

(

)

[inline]

Write access to tensor elements.

Definition at line 76 of file CMTTensor.h.

{return Zyy;}

std::complex<double>& CMTTensor::SetZxx

(

)

[inline]

Definition at line 77 of file CMTTensor.h.

{return Zxx;}

std::complex<double>& CMTTensor::SetZxy

(

)

[inline]

Definition at line 78 of file CMTTensor.h.

{return Zxy;}

std::complex<double>& CMTTensor::SetZyx

(

)

[inline]

Definition at line 79 of file CMTTensor.h.

{return Zyx;}

double CMTTensor::GetdZxx

(

)

const [inline]

Return tensor element errors.

Definition at line 81 of file CMTTensor.h.

Referenced by CMTStation::WriteAsJ().

{return dZxx;}

double CMTTensor::GetdZxy

(

)

const [inline]

Definition at line 82 of file CMTTensor.h.

Referenced by CMTStation::WriteAsJ().

{return dZxy;}

double CMTTensor::GetdZyx

(

)

const [inline]

Definition at line 83 of file CMTTensor.h.

Referenced by CMTStation::WriteAsJ().

{return dZyx;}

double CMTTensor::GetdZyy

(

)

const [inline]

Definition at line 84 of file CMTTensor.h.

Referenced by CMTStation::WriteAsJ().

{return dZyy;}

double& CMTTensor::SetdZyy

(

)

[inline]

Write access to errors.

Definition at line 86 of file CMTTensor.h.

{return dZyy;}

double& CMTTensor::SetdZxx

(

)

[inline]

Definition at line 87 of file CMTTensor.h.

{return dZxx;}

double& CMTTensor::SetdZxy

(

)

[inline]

Definition at line 88 of file CMTTensor.h.

{return dZxy;}

double& CMTTensor::SetdZyx

(

)

[inline]

Definition at line 89 of file CMTTensor.h.

{return dZyx;}

double CMTTensor::GetRhoxx

(

)

const [inline]

Return apparent resistivity.

Definition at line 91 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcRho(Zxx);}

double CMTTensor::GetRhoxy

(

)

const [inline]

Definition at line 92 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcRho(Zxy);}

double CMTTensor::GetRhoyx

(

)

const [inline]

Definition at line 93 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcRho(Zyx);}

double CMTTensor::GetRhoyy

(

)

const [inline]

Definition at line 94 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcRho(Zyy);}

double CMTTensor::GetPhixx

(

)

const [inline]

Return phase.

Definition at line 96 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcPhase(Zxx);}

double CMTTensor::GetPhixy

(

)

const [inline]

Definition at line 97 of file CMTTensor.h.

Referenced by C1DMTObjective::C1DMTObjective(), GetAlphaHigh(), GetMaxPhiDiff(), main(), and SetupMTFitParameters().

{return CalcPhase(Zxy);}

double CMTTensor::GetPhiyx

(

)

const [inline]

Definition at line 98 of file CMTTensor.h.

Referenced by GetAlphaHigh(), GetMaxPhiDiff(), main(), and SetupMTFitParameters().

{return CalcPhase(Zyx);}

double CMTTensor::GetPhiyy

(

)

const [inline]

Definition at line 99 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcPhase(Zyy);}

double CMTTensor::GetdRhoxx

(

)

const [inline]

Return Rho Error for tensor elements.

Definition at line 101 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

{return CalcdRho(Zxx,dZxx);}

double CMTTensor::GetdRhoxy

(

)

const [inline]

Definition at line 102 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcdRho(Zxy,dZxy);}

double CMTTensor::GetdRhoyx

(

)

const [inline]

Definition at line 103 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

{return CalcdRho(Zyx,dZyx);}

double CMTTensor::GetdRhoyy

(

)

const [inline]

Definition at line 104 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

{return CalcdRho(Zyy,dZyy);}

double CMTTensor::GetdPhixx

(

)

const [inline]

return phase error for tensor elements

Definition at line 106 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcdPhase(Zxx,dZxx);}

double CMTTensor::GetdPhixy

(

)

const [inline]

Definition at line 107 of file CMTTensor.h.

Referenced by C1DMTObjective::C1DMTObjective(), main(), and SetupMTFitParameters().

{return CalcdPhase(Zxy,dZxy);}

double CMTTensor::GetdPhiyx

(

)

const [inline]

Definition at line 108 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcdPhase(Zyx,dZyx);}

double CMTTensor::GetdPhiyy

(

)

const [inline]

Definition at line 109 of file CMTTensor.h.

Referenced by main(), and SetupMTFitParameters().

{return CalcdPhase(Zyy,dZyy);}

double CMTTensor::GetRhoxxStar

(

)

const [inline]

Return Schmucker's rho* for tensor elements.

Definition at line 111 of file CMTTensor.h.

{return CalcRhoStar(Zxx);}

double CMTTensor::GetRhoxyStar

(

)

const [inline]

Definition at line 112 of file CMTTensor.h.

Referenced by PrintRhosZs().

{return CalcRhoStar(Zxy);}

double CMTTensor::GetRhoyxStar

(

)

const [inline]

Definition at line 113 of file CMTTensor.h.

Referenced by PrintRhosZs().

{return CalcRhoStar(Zyx);}

double CMTTensor::GetRhoyyStar

(

)

const [inline]

Definition at line 114 of file CMTTensor.h.

{return CalcRhoStar(Zyy);}

double CMTTensor::GetZxxStar

(

)

const [inline]

Return Schmucker's z* for tensor elements.

Definition at line 116 of file CMTTensor.h.

{ return CalcZStar(Zxx);}

double CMTTensor::GetZxyStar

(

)

const [inline]

Definition at line 117 of file CMTTensor.h.

Referenced by PrintRhosZs().

{ return CalcZStar(Zxy);}

double CMTTensor::GetZyxStar

(

)

const [inline]

Definition at line 118 of file CMTTensor.h.

Referenced by PrintRhosZs().

{ return CalcZStar(Zyx);}

double CMTTensor::GetZyyStar

(

)

const [inline]

Definition at line 119 of file CMTTensor.h.

{ return CalcZStar(Zyy);}

std::complex<double> CMTTensor::GetS1

(

)

const [inline]

Some invariants and intermediate quantities for strike and skew calculation.

Definition at line 121 of file CMTTensor.h.

Referenced by GetAlpha(), GetEta(), GetKappa(), and GetMu().

{return Zxx + Zyy;}

std::complex<double> CMTTensor::GetS2

(

)

const [inline]

Definition at line 122 of file CMTTensor.h.

Referenced by GetAlpha(), GetEta(), GetMu(), and GetSigma().

{return Zxy + Zyx;}

std::complex<double> CMTTensor::GetD1

(

)

const [inline]

Definition at line 123 of file CMTTensor.h.

Referenced by GetAlpha(), GetEta(), GetMu(), and GetSigma().

{return Zxx - Zyy;}

std::complex<double> CMTTensor::GetD2

(

)

const [inline]

Definition at line 124 of file CMTTensor.h.

Referenced by GetAlpha(), GetBerd(), GetEta(), GetKappa(), GetMu(), and GetSigma().

{return Zxy - Zyx;}

std::complex<double> CMTTensor::GetBerd

(

)

const [inline]

The Berdichevskyi invariant.

Definition at line 126 of file CMTTensor.h.

References GetD2().

Referenced by SetupMTFitParameters().

{return 0.5*GetD2();}

Here is the call graph for this function:

double CMTTensor::GetdBerd

(

)

const [inline]

The error of the Berdichevskyi invariant.

Definition at line 128 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

{ return 0.5*sqrt(dZxy*dZxy+dZyx*dZyx);}

std::complex<double> CMTTensor::GetDet

(

)

const [inline]

The determinant.

Definition at line 130 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

{return Zxx * Zyy - Zxy*Zyx;}

double CMTTensor::GetdDet

(

)

const [inline]

The error of the determinant.

Definition at line 132 of file CMTTensor.h.

Referenced by SetupMTFitParameters().

                           { return sqrt( abs(Zyy*Zyy)*dZxx*dZxx + abs(Zxx*Zxx)*dZyy*dZyy
                + abs(Zxy*Zxy)*dZyx*dZyx + abs(Zyx*Zyx)*dZxy*dZxy);}

double CMTTensor::GetDetreal

(

)

const [inline]

The determinant of the real parts of Z.

Definition at line 135 of file CMTTensor.h.

Referenced by GetPhi11(), GetPhi12(), GetPhi21(), GetPhi22(), and main().

{return Zxx.real() * Zyy.real() - Zxy.real() * Zyx.real();}

double CMTTensor::GetdDetreal

(

)

const [inline]

Get the error of the determinant of the real part.

Definition at line 137 of file CMTTensor.h.

                               { return sqrt(gsl_pow_2(Zyy.real()) * gsl_pow_2(dZxx) +
                gsl_pow_2(Zxx.real()) * gsl_pow_2(dZyy) + gsl_pow_2(Zxy.real()) * gsl_pow_2(dZyx)
                + gsl_pow_2(Zyx.real()) * gsl_pow_2(dZxy));}

double CMTTensor::GetMu

(

)

const [inline]

Rotationally invariant phase difference.

Definition at line 141 of file CMTTensor.h.

References Commute(), GetD1(), GetD2(), GetS1(), and GetS2().

Referenced by main().

{ return sqrt(fabs(Commute(GetD1(),GetS2())+Commute(GetS1(),GetD2())))/abs(GetD2());}

Here is the call graph for this function:

double CMTTensor::GetKappa

(

)

const [inline]

Swift's skew.

Definition at line 143 of file CMTTensor.h.

References GetD2(), and GetS1().

Referenced by main().

{return abs(GetS1())/abs(GetD2());}

Here is the call graph for this function:

double CMTTensor::GetSigma

(

)

const [inline]

Definition at line 144 of file CMTTensor.h.

References GetD1(), GetD2(), and GetS2().

Referenced by main().

{return (gsl_pow_2(abs(GetD1()))+gsl_pow_2(abs(GetS2())))/gsl_pow_2(abs(GetD2()));}

Here is the call graph for this function:

double CMTTensor::GetEta

(

)

const [inline]

Bahr's skew.

Definition at line 146 of file CMTTensor.h.

References Commute(), GetD1(), GetD2(), GetS1(), and GetS2().

Referenced by main().

                          {
                return sqrt(fabs(Commute(GetD1(),GetS2())-Commute(GetS1(),GetD2())))/abs(GetD2());}

Here is the call graph for this function:

double CMTTensor::GetAlpha

(

)

const [inline]

Definition at line 149 of file CMTTensor.h.

References Commute(), GetD1(), GetD2(), GetS1(), and GetS2().

Referenced by GetAlphaHigh(), GetMaxPhiDiff(), main(), and SetupMTFitParameters().

                           {
                double denominator = Commute(GetS1(),GetD1())-Commute(GetS2(),GetD2());
                if (gsl_fcmp(denominator,0.0,GSL_DBL_EPSILON) !=0)
                        return 0.5 * atan((Commute(GetS1(),GetS2()) - Commute(GetD1(),GetD2()))/
                                        (denominator));
                else
                        return 0.0;}

Here is the call graph for this function:

double CMTTensor::GetAlphaHigh

(

)

const [inline]

Calculate strike angle, so it points to high conductivity direction (Phixy > Phiyx).

Definition at line 157 of file CMTTensor.h.

References GetAlpha(), GetPhixy(), GetPhiyx(), and Rotate().

                                   {
                double regalpha = GetAlpha(); // calculate strike angle
                CMTTensor tmp(*this); //create local copy
                tmp.Rotate(regalpha); //rotate to new coordinate system
                if (tmp.GetPhiyx() > tmp.GetPhixy())
                        regalpha += PI/2.0;
                return regalpha;
        }

Here is the call graph for this function:

double CMTTensor::GetMaxPhiDiff

(

)

const [inline]

Maximum phase difference.

Definition at line 166 of file CMTTensor.h.

References GetAlpha(), GetPhixy(), GetPhiyx(), and Rotate().

                                    {
                CMTTensor tmp(*this); //create local copy
                tmp.Rotate(GetAlpha());
                return fabs(tmp.GetPhixy() - tmp.GetPhiyx());
        }

Here is the call graph for this function:

double CMTTensor::GetPhi11

(

)

const [inline]

All the following quantities are defined in Caldwell GJI 158, 457-469, the phase tensor elements.

Definition at line 172 of file CMTTensor.h.

References GetDetreal().

Referenced by GetAlpha_phi(), GetBeta_phi(), GetdetPhi(), GetPi1(), GetPi2(), GettrPhi(), main(), PTensorMTStation::operator=(), PTensor1DMTObjective::SafeParallel(), and SetupMTFitParameters().

                            {
                const double dr = GetDetreal();
                if (gsl_fcmp(dr,0.0,GSL_DBL_EPSILON) !=0)
                        return ((Zyy.real() * Zxx.imag() - Zxy.real()*Zyx.imag())/dr);
                else
                        return 0.0;}

Here is the call graph for this function:

double CMTTensor::GetPhi12

(

)

const [inline]

Definition at line 178 of file CMTTensor.h.

References GetDetreal().

Referenced by GetAlpha_phi(), GetBeta_phi(), GetdetPhi(), GetPi1(), GetPi2(), GetskPhi(), main(), PTensorMTStation::operator=(), PTensor1DMTObjective::SafeParallel(), and SetupMTFitParameters().

                                {
                        const double dr = GetDetreal();
                    if (gsl_fcmp(dr,0.0,GSL_DBL_EPSILON) !=0)
                        return ((Zyy.real() * Zxy.imag() - Zxy.real()*Zyy.imag())/dr);
                    else
                        return 0.0;}

Here is the call graph for this function:

double CMTTensor::GetPhi21

(

)

const [inline]

Definition at line 184 of file CMTTensor.h.

References GetDetreal().

Referenced by GetAlpha_phi(), GetBeta_phi(), GetdetPhi(), GetPi1(), GetPi2(), GetskPhi(), main(), PTensorMTStation::operator=(), PTensor1DMTObjective::SafeParallel(), and SetupMTFitParameters().

                                {
                        const double dr = GetDetreal();
                    if (gsl_fcmp(dr,0.0,GSL_DBL_EPSILON) !=0)
                        return ((Zxx.real() * Zyx.imag() - Zyx.real()*Zxx.imag())/dr);
                    else
                        return 0.0;}

Here is the call graph for this function:

double CMTTensor::GetPhi22

(

)

const [inline]

Definition at line 190 of file CMTTensor.h.

References GetDetreal().

Referenced by GetAlpha_phi(), GetBeta_phi(), GetdetPhi(), GetPi1(), GetPi2(), GettrPhi(), main(), PTensorMTStation::operator=(), PTensor1DMTObjective::SafeParallel(), and SetupMTFitParameters().

                                {
                        const double dr = GetDetreal();
                        if (gsl_fcmp(dr,0.0,GSL_DBL_EPSILON) !=0)
                                return ((Zxx.real() * Zyy.imag() - Zyx.real()*Zxy.imag())/dr);
                        else
                            return 0.0;}

Here is the call graph for this function:

double CMTTensor::GetAlpha_phi

(

)

const [inline]

Definition at line 196 of file CMTTensor.h.

References GetPhi11(), GetPhi12(), GetPhi21(), and GetPhi22().

Referenced by GetPhiStrike(), main(), and SetupMTFitParameters().

                                    {
                        const double diff = GetPhi11() - GetPhi22();
                        if (gsl_fcmp(diff,0.0,GSL_DBL_EPSILON) !=0)
                                return 0.5* atan2((GetPhi12() + GetPhi21()),diff);
                        else
                                return 0.0;}

Here is the call graph for this function:

double CMTTensor::GetBeta_phi

(

)

const [inline]

Definition at line 202 of file CMTTensor.h.

References GetPhi11(), GetPhi12(), GetPhi21(), and GetPhi22().

Referenced by GetPhiStrike(), main(), and SetupMTFitParameters().

                                   {
                        return 0.5* atan2((GetPhi12() - GetPhi21()),(GetPhi11() + GetPhi22()));}

Here is the call graph for this function:

double CMTTensor::GetPi1

(

)

const [inline]

Definition at line 204 of file CMTTensor.h.

References GetPhi11(), GetPhi12(), GetPhi21(), and GetPhi22().

Referenced by GetPhiMax(), GetPhiMin(), and main().

{ return 0.5 * sqrt( pow(GetPhi11() - GetPhi22(),2) + pow(GetPhi12() + GetPhi21(),2));}

Here is the call graph for this function:

double CMTTensor::GetPi2

(

)

const [inline]

Definition at line 205 of file CMTTensor.h.

References GetPhi11(), GetPhi12(), GetPhi21(), and GetPhi22().

Referenced by GetPhiMax(), GetPhiMin(), and main().

{return 0.5 * sqrt( pow(GetPhi11() + GetPhi22(),2) + pow(GetPhi12() - GetPhi21(),2));}

Here is the call graph for this function:

double CMTTensor::GetPhiStrike

(

)

const [inline]

Definition at line 206 of file CMTTensor.h.

References GetAlpha_phi(), and GetBeta_phi().

Referenced by main().

{return GetAlpha_phi() - GetBeta_phi();}

Here is the call graph for this function:

double CMTTensor::GetPhiMax

(

)

const [inline]

Definition at line 207 of file CMTTensor.h.

References GetPi1(), and GetPi2().

Referenced by GetPhiEllip(), main(), and SetupMTFitParameters().

{return GetPi2() + GetPi1();}

Here is the call graph for this function:

double CMTTensor::GetPhiMin

(

)

const [inline]

Definition at line 208 of file CMTTensor.h.

References GetPi1(), and GetPi2().

Referenced by GetPhiEllip(), main(), and SetupMTFitParameters().

{return GetPi2() - GetPi1();}

Here is the call graph for this function:

double CMTTensor::GettrPhi

(

)

const [inline]

Definition at line 209 of file CMTTensor.h.

References GetPhi11(), and GetPhi22().

Referenced by GetPhi1(), and main().

{return GetPhi11() + GetPhi22();}

Here is the call graph for this function:

double CMTTensor::GetskPhi

(

)

const [inline]

Definition at line 210 of file CMTTensor.h.

References GetPhi12(), and GetPhi21().

Referenced by GetPhi3(), and main().

{return GetPhi12() - GetPhi21();}

Here is the call graph for this function:

double CMTTensor::GetdetPhi

(

)

const [inline]

Definition at line 211 of file CMTTensor.h.

References GetPhi11(), GetPhi12(), GetPhi21(), and GetPhi22().

Referenced by GetPhi2(), GetPhi2Sq(), and main().

{return GetPhi11() * GetPhi22() - GetPhi12()* GetPhi21();}

Here is the call graph for this function:

double CMTTensor::GetPhi1

(

)

const [inline]

Definition at line 212 of file CMTTensor.h.

References GettrPhi().

Referenced by main().

{return GettrPhi()/2.;}

Here is the call graph for this function:

double CMTTensor::GetPhi2

(

)

const [inline]

Definition at line 213 of file CMTTensor.h.

References GetdetPhi().

Referenced by main().

{return sqrt(fabs(GetdetPhi()));}

Here is the call graph for this function:

double CMTTensor::GetPhi2Sq

(

)

const [inline]

Definition at line 214 of file CMTTensor.h.

References GetdetPhi().

{return GetdetPhi();}

Here is the call graph for this function:

double CMTTensor::GetPhi3

(

)

const [inline]

Definition at line 215 of file CMTTensor.h.

References GetskPhi().

Referenced by main().

{return GetskPhi()/2.;}

Here is the call graph for this function:

double CMTTensor::GetPhiEllip

(

)

const [inline]

Definition at line 216 of file CMTTensor.h.

References GetPhiMax(), and GetPhiMin().

Referenced by main().

                                   {
                        return (GetPhiMax() - GetPhiMin())/(GetPhiMax()+GetPhiMin()); }

Here is the call graph for this function:

double CMTTensor::GetXi1

(

)

const [inline]

Definition at line 219 of file CMTTensor.h.

Referenced by Getd12(), Getd13(), Getd41(), GetI1(), GetI5(), and GetI6().

{return 0.5*(Zxx.real() + Zyy.real());}

double CMTTensor::GetXi2

(

)

const [inline]

Definition at line 220 of file CMTTensor.h.

Referenced by Getd12(), Getd23(), Getd24(), and GetI3().

{return 0.5*(Zxy.real() + Zyx.real());}

double CMTTensor::GetXi3

(

)

const [inline]

Definition at line 221 of file CMTTensor.h.

Referenced by Getd13(), Getd23(), Getd34(), and GetI3().

{return 0.5*(Zxx.real() - Zyy.real());}

double CMTTensor::GetXi4

(

)

const [inline]

Definition at line 222 of file CMTTensor.h.

Referenced by Getd24(), Getd34(), Getd41(), GetI1(), GetI5(), and GetI6().

{return 0.5*(Zxy.real() - Zyx.real());}

double CMTTensor::GetEta1

(

)

const [inline]

Definition at line 223 of file CMTTensor.h.

Referenced by Getd12(), Getd13(), Getd41(), GetI2(), GetI5(), and GetI6().

{return 0.5*(Zxx.imag() + Zyy.imag());}

double CMTTensor::GetEta2

(

)

const [inline]

Definition at line 224 of file CMTTensor.h.

Referenced by Getd12(), Getd23(), Getd24(), and GetI4().

{return 0.5*(Zxy.imag() + Zyx.imag());}

double CMTTensor::GetEta3

(

)

const [inline]

Definition at line 225 of file CMTTensor.h.

Referenced by Getd13(), Getd23(), Getd34(), and GetI4().

{return 0.5*(Zxx.imag() - Zyy.imag());}

double CMTTensor::GetEta4

(

)

const [inline]

Definition at line 226 of file CMTTensor.h.

Referenced by Getd24(), Getd34(), Getd41(), GetI2(), GetI5(), and GetI6().

{return 0.5*(Zxy.imag() - Zyx.imag());}

double CMTTensor::GetI1

(

)

const [inline]

Definition at line 227 of file CMTTensor.h.

References GetXi1(), and GetXi4().

Referenced by Getd12(), Getd13(), Getd23(), Getd24(), Getd34(), Getd41(), GetI3(), GetI5(), GetI6(), and Getr().

{return sqrt(gsl_pow_2(GetXi1()) + gsl_pow_2(GetXi4()));}

Here is the call graph for this function:

double CMTTensor::GetI2

(

)

const [inline]

Definition at line 228 of file CMTTensor.h.

References GetEta1(), and GetEta4().

Referenced by Getd12(), Getd13(), Getd23(), Getd24(), Getd34(), Getd41(), GetI4(), GetI5(), GetI6(), and Getr().

{return sqrt(gsl_pow_2(GetEta1()) + gsl_pow_2(GetEta4()));}

Here is the call graph for this function:

double CMTTensor::GetI3

(

)

const [inline]

Definition at line 229 of file CMTTensor.h.

References GetI1(), GetXi2(), and GetXi3().

{return sqrt(gsl_pow_2(GetXi2()) + gsl_pow_2(GetXi3()))/GetI1();}

Here is the call graph for this function:

double CMTTensor::GetI4

(

)

const [inline]

Definition at line 230 of file CMTTensor.h.

References GetEta2(), GetEta3(), and GetI2().

{return sqrt(gsl_pow_2(GetEta2()) + gsl_pow_2(GetEta3()))/GetI2();}

Here is the call graph for this function:

double CMTTensor::GetI5

(

)

const [inline]

Definition at line 231 of file CMTTensor.h.

References GetEta1(), GetEta4(), GetI1(), GetI2(), GetXi1(), and GetXi4().

Referenced by Geta(), and Getb().

{return (GetXi4()*GetEta1()+GetXi1()*GetEta4())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::GetI6

(

)

const [inline]

Definition at line 232 of file CMTTensor.h.

References GetEta1(), GetEta4(), GetI1(), GetI2(), GetXi1(), and GetXi4().

Referenced by Geta(), and Getb().

{return (GetXi4()*GetEta1()-GetXi1()*GetEta4())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::Getd13

(

)

const [inline]

Definition at line 233 of file CMTTensor.h.

References GetEta1(), GetEta3(), GetI1(), GetI2(), GetXi1(), and GetXi3().

Referenced by GetQ().

{return (GetXi1()*GetEta3()-GetXi3()*GetEta1())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::Getd12

(

)

const [inline]

Definition at line 234 of file CMTTensor.h.

References GetEta1(), GetEta2(), GetI1(), GetI2(), GetXi1(), and GetXi2().

Referenced by GetQ().

{return (GetXi1()*GetEta2()-GetXi2()*GetEta1())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::Getd24

(

)

const [inline]

Definition at line 235 of file CMTTensor.h.

References GetEta2(), GetEta4(), GetI1(), GetI2(), GetXi2(), and GetXi4().

Referenced by GetQ().

{return (GetXi2()*GetEta4()-GetXi4()*GetEta2())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::Getd34

(

)

const [inline]

Definition at line 236 of file CMTTensor.h.

References GetEta3(), GetEta4(), GetI1(), GetI2(), GetXi3(), and GetXi4().

Referenced by GetQ().

{return (GetXi3()*GetEta4()-GetXi4()*GetEta3())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::Getd41

(

)

const [inline]

Definition at line 237 of file CMTTensor.h.

References GetEta1(), GetEta4(), GetI1(), GetI2(), GetXi1(), and GetXi4().

Referenced by GetI7().

{return (GetXi4()*GetEta1()-GetXi1()*GetEta4())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::Getd23

(

)

const [inline]

Definition at line 238 of file CMTTensor.h.

References GetEta2(), GetEta3(), GetI1(), GetI2(), GetXi2(), and GetXi3().

Referenced by GetI7().

{return (GetXi2()*GetEta3()-GetXi3()*GetEta2())/(GetI1()*GetI2());}

Here is the call graph for this function:

double CMTTensor::GetQ

(

)

const [inline]

Definition at line 239 of file CMTTensor.h.

References Getd12(), Getd13(), Getd24(), and Getd34().

Referenced by GetI7(), and main().

{return sqrt(gsl_pow_2(Getd12()-Getd34())+gsl_pow_2(Getd13()+Getd24()));}

Here is the call graph for this function:

double CMTTensor::GetI7

(

)

const [inline]

Definition at line 240 of file CMTTensor.h.

References Getd23(), Getd41(), and GetQ().

{return (Getd41() + Getd23())/GetQ();}

Here is the call graph for this function:

double CMTTensor::Geta

(

)

const [inline]

Definition at line 241 of file CMTTensor.h.

References GetI5(), and GetI6().

{return gsl_pow_2(GetI5() - GetI6());}

Here is the call graph for this function:

double CMTTensor::Getb

(

)

const [inline]

Definition at line 242 of file CMTTensor.h.

References GetI5(), and GetI6().

                            {return 1.0 - GetI5() * GetI6() + sqrt(1.0+gsl_pow_2(GetI5())*gsl_pow_2(GetI6())
                                - gsl_pow_2(GetI5()) - gsl_pow_2(GetI6()));
        }

Here is the call graph for this function:

double CMTTensor::Getr

(

)

const [inline]

Definition at line 245 of file CMTTensor.h.

References GetI1(), and GetI2().

{return GetI2()/GetI1();}

Here is the call graph for this function:

double CMTTensor::GetRx

(

)

const [inline]

Return coherency for the x-direction.

Definition at line 251 of file CMTTensor.h.

{return Rx;}

double CMTTensor::GetRy

(

)

const [inline]

Return coherency for the y-direction.

Definition at line 253 of file CMTTensor.h.

{return Ry;}

double CMTTensor::GetNu

(

)

const [inline]

The degrees of freedom used for transfer function estimation.

Definition at line 255 of file CMTTensor.h.

{return Nu;}

CMTTensor & CMTTensor::operator=

(

const CMTTensor &

source

)

Definition at line 38 of file CMTTensor.cpp.

References dZxx, dZxy, dZyx, dZyy, frequency, Nu, rotangle, Rx, Ry, Zxx, Zxy, Zyx, and Zyy.

{
        if (this == &source)
                return *this;
        Zxx = source.Zxx;
        Zxy = source.Zxy;
        Zyx = source.Zyx;
        Zyy = source.Zyy;
        dZxx = source.dZxx;
        dZxy = source.dZxy;
        dZyx = source.dZyx;
        dZyy = source.dZyy;
        frequency = source.frequency;
        rotangle = source.rotangle;
        Rx = source.Rx;
        Ry = source.Ry;
        Nu = source.Nu;
        return *this;
}

---

Friends And Related Function Documentation

friend class CMTStation [friend]

Definition at line 256 of file CMTTensor.h.

friend class C1DMTSynthData [friend]

Definition at line 257 of file CMTTensor.h.

friend class JParser [friend]

Definition at line 258 of file CMTTensor.h.

friend class EDIParser [friend]

Definition at line 259 of file CMTTensor.h.

---

The documentation for this class was generated from the following files:

• CMTTensor.h
• CMTTensor.cpp

---
